KBK free standing crane introduction
KBK free standing cranes are imported European technology. The running rails and main beams are closed rails. Crane modular production and assembly ensure reliable and stable. Free standing bridge cranes are suitable for a wide range of applications, especially for modern machining, assembly, warehousing and other advanced production lines.

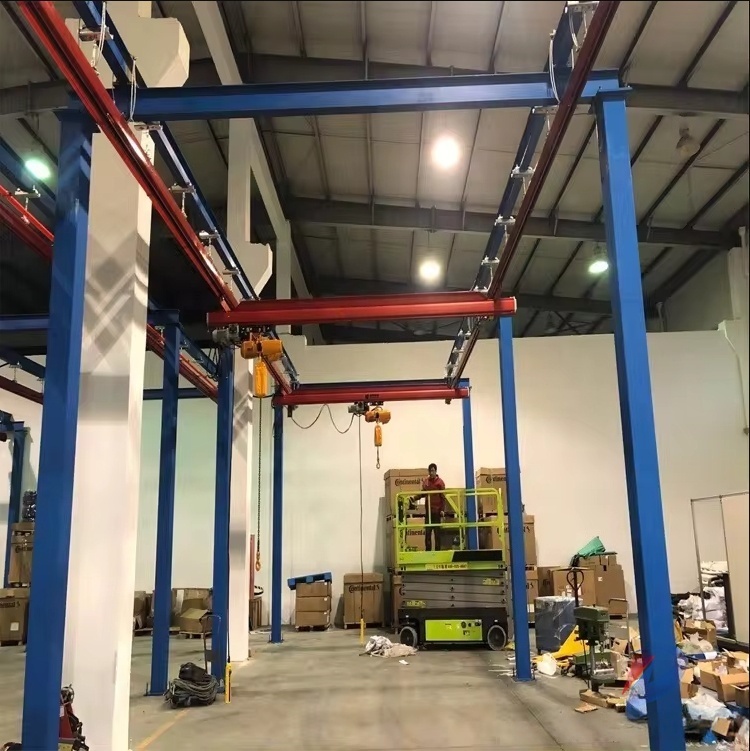

KBK Free Standing Crane|Rigid Free Standing Workstation Crane
The combined free standing workstation crane adopts a closed rail design with high strength and light weight, which effectively reduces the wear of the rail trolley and the hoist wheel. In the case of insufficient lifting points, truss-type steel rails can be used to strengthen the load-bearing of the rails, thereby achieving a larger span and reducing the number of hangers. The steel truss design allows the lifting span to reach 9m, reducing the possibility of supporting the column to the work site, making the self-erecting crane widely used in various industries.
KBK Free Standing Crane
KBK Free Standing Crane Features
■ Loading up to 2000kg and above
■ The length of the main beam can be up to 10 meters
■ Fixed rail support spacing up to 9 meters
■ Modular design with good expandability
■ Move lightly and easy to position
■ Unique trolley design prevents jamming while moving lightly
■ Rigid connection design, no oblique pull
■ Optional manual operation and electric operation
■ Simple structure, convenient and quick installation, cost-effective
■ Installed independently on the floor of the workshop, the strength requirement is only concrete C30, thickness ≥150mm

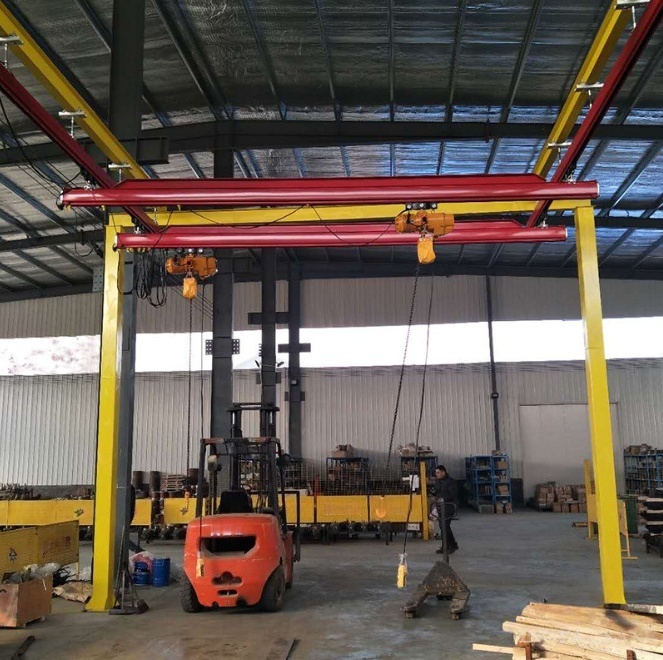

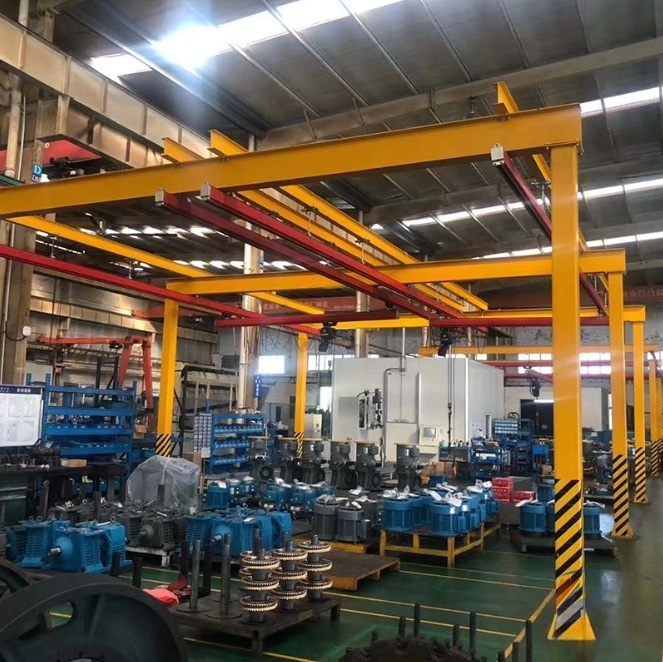

KBK Free Standing Bridge Crane Application
KBK Free Standing Bridge Crane

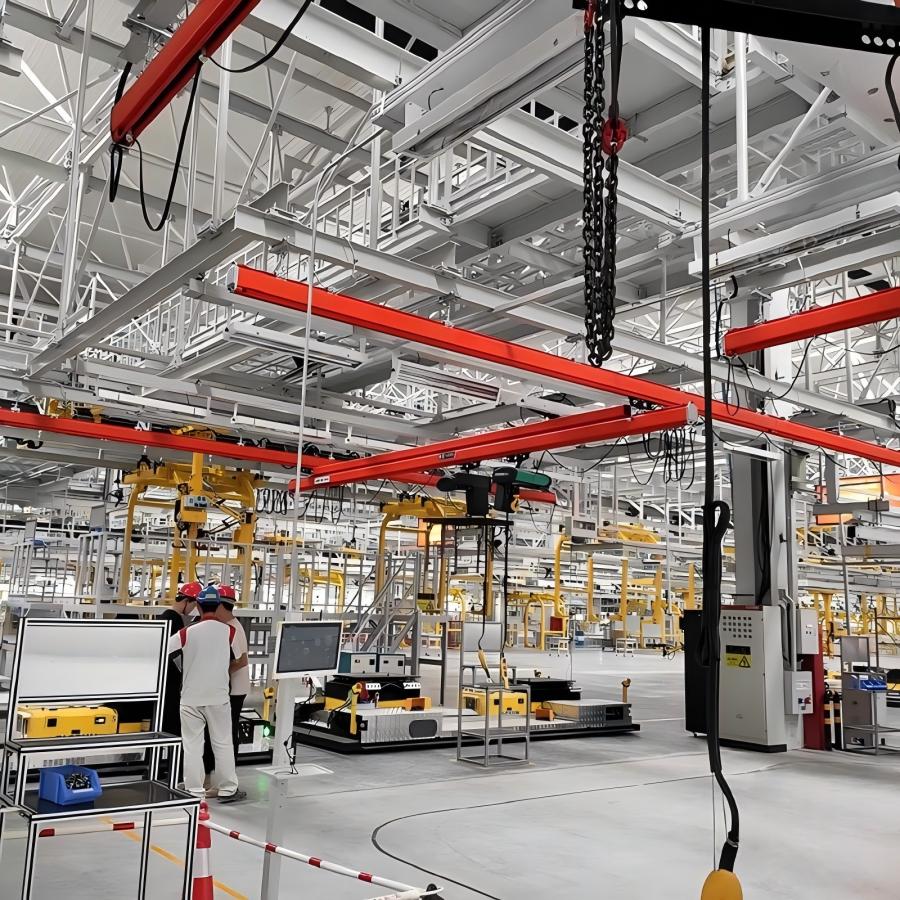

KBK Rigid Suspension Crane
The combined suspension crane is more suitable for connecting different production processes, and can carry out material handling at different stations without occupying any floor area. The truss-type track design can reduce the lifting point of the fixed type rail, which makes the auxiliary hanging more simple, saves the complicated steel structure in the air, reduces the load on the plant and saves the cost.
KBK Rigid Combined Suspension Crane
KBK Rigid Suspension Crane Features
■ Loading up to 2000kg and above
■ The length of the main beam can be up to 10 meters
■ Fixed rail support spacing up to 9 meters
■ Modular design with good expandability
■ Move lightly and easy to position
■ Unique trolley design prevents jamming while moving lightly
■ Rigid connection design, no oblique pull
■ Optional manual operation and electric operation
■ Applicable to the application of light steel grid on the upper part of the plant
■ A variety of hanging methods can be hung from the roof girders or suspended by the factory column.
KBK Rigid Suspension Crane Application
KBK Rigid Suspension Crane
